Pallet transport, Conveyor technology

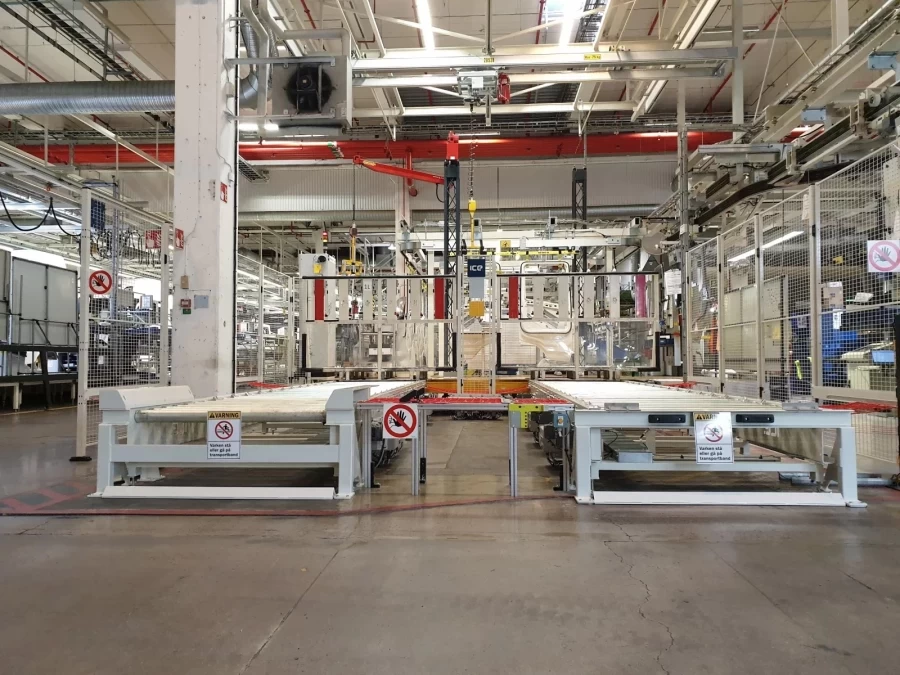

For pallet transport we have developed our own heavy conveyors with a load capacity of up to 2,000 kg consisting of roller conveyors, chain conveyors, chain shifters and turntables. We know the requirements of our customers, so our conveyor systems are equipped with additional devices that enable:

• Automatic detection of the pallet placed or removed by the pallet truck.
• Automatic passage control of the pallet. The Europallet itself is checked whether it contains all parts (bottom plates, logs), whether the parts are correctly positioned, the fork clearance is met and the pallet is not broken. In addition, the material to be transported is checked to ensure that it does not exceed the footprint of the pallet and the overall height is measured. The non-conforming pallet is put on the repair track, the conforming pallet is sent to the automated warehouse.
• Automatic disassembly of stacked pallets. The machine scans the incoming column of pallets and breaks them down into individual pallets for further processing. Pallets are disassembled sequentially and a stack with multiple pallet types (E-pal, H-pal) can be disassembled. if required, our machine is also capable of the opposite function, namely stacking pallets from the factory into a similar stack with defined height and weight.

We also equip our conveyors as required with devices such as pallet stacking under robotic applications, stoppers in front of critical nodes and other devices necessary for correct and robust operation of the conveyors with minimum errors.
